#Introduction

This project aims to implement I2C core, both master and slave. Then, a scenario will be implemented to verify I2C is working on real FPGA and not only in simulation. The master will be tested by showing three numbers as a counter on SSD1306 with I2C interface.

I2C might be used for communication with multiple devices. It supports up to 3.4 Mbps speeds (High-speed mode). [-@i2c-spec] That is sufficient for many applications. I2C is used often, most microcontrollers include I2C hardware support as well.

There can be multiple devices on the bus with just two wires, called sda and scl. Every slave gets an address assigned, and the master can select the device by transmitting the address corresponding to selected slave. There can be multiple masters on the bus. If both start a transaction at the same time, there is an arbitration. The first master that detects incorrect value of sda loses, and the other one gets to make the transaction.

#Manual

The project consists of multiple VHDL libraries. The most important one is perhaps the i2c library located in the src/i2c folder. This library uses the utils library located in src/utils. Blocks from the utils library are not documented here for their simplicity. It contains a open_drain_buffer, a metastability_filter, a pulse_delay for delaying a pulse, sync_edge_detector for detecting rising or falling edges on a signal synchronous to a clock.

There is ssd1306 library with two entities for testing out the I2C master entity with SSD1306 display. One of these makes the display full on, the other has a counter that counts every second.

Last, but not least there is mcu_slave library that contains two entities. One of these just respondes with a simple count when read I2C requested. The other entity is behaving as a register reader/writer, with 20 registers. The first written byte is treated as an address. Other read bytes are consecutive reads from the registers. Other writes are treated as consecutive writes to the registers.

::: note The port names follow a specific pattern.

Inputs have _i suffix, whereas outputs have _o suffix. When an input or output is active low, it's suffix will include n at the end. :::

#Simulation

For simulating, VUnit framework has been used. It comes with a Python library that makes it easy to run the testbenches. The starting script is located in the root of the project, and called run.py. It also comes with a VHDL library that adds some enhancements for the testing and communication with the Python side.

All non-trivial entities were tested in simulation with various use cases. Every entity was tested by itself, and then, tests of the top level entities were performed as well. RTL I2C master has been tested by having a simple behavioral I2C slave implemented. RTL I2C slave by having simple I2C master implemented.

All of the tests are checking if the result is correct by themselves. It's thus not required to go into the waves and check as a person. This means it's possible to make some changes, and check whether the changes have broken something very fast.

The libraries for simulation include _tb suffix. There is a testbench library for every design library.

#SSD1306 display counter

The SSD1306 display is a 128x64 display that supports various interfacing methods such as I2C.

The characters used for the counter were obtained from a monochrome bitmap font font8x8.

The display first has to be initialized, the RAM nulled, and then data might be sent then. The display supports three addressing modes, page, horizontal, and vertical. It has multiple pages, each page consists of 8 rows on the display. The horizontal addressing mode is exploited for drawing characters/numbers. The character can be written in one go, and after a character is written, another one can be written correctly without adjusting the cursor. This makes it possible to draw characters without storing them in some kind of buffer on the master device.

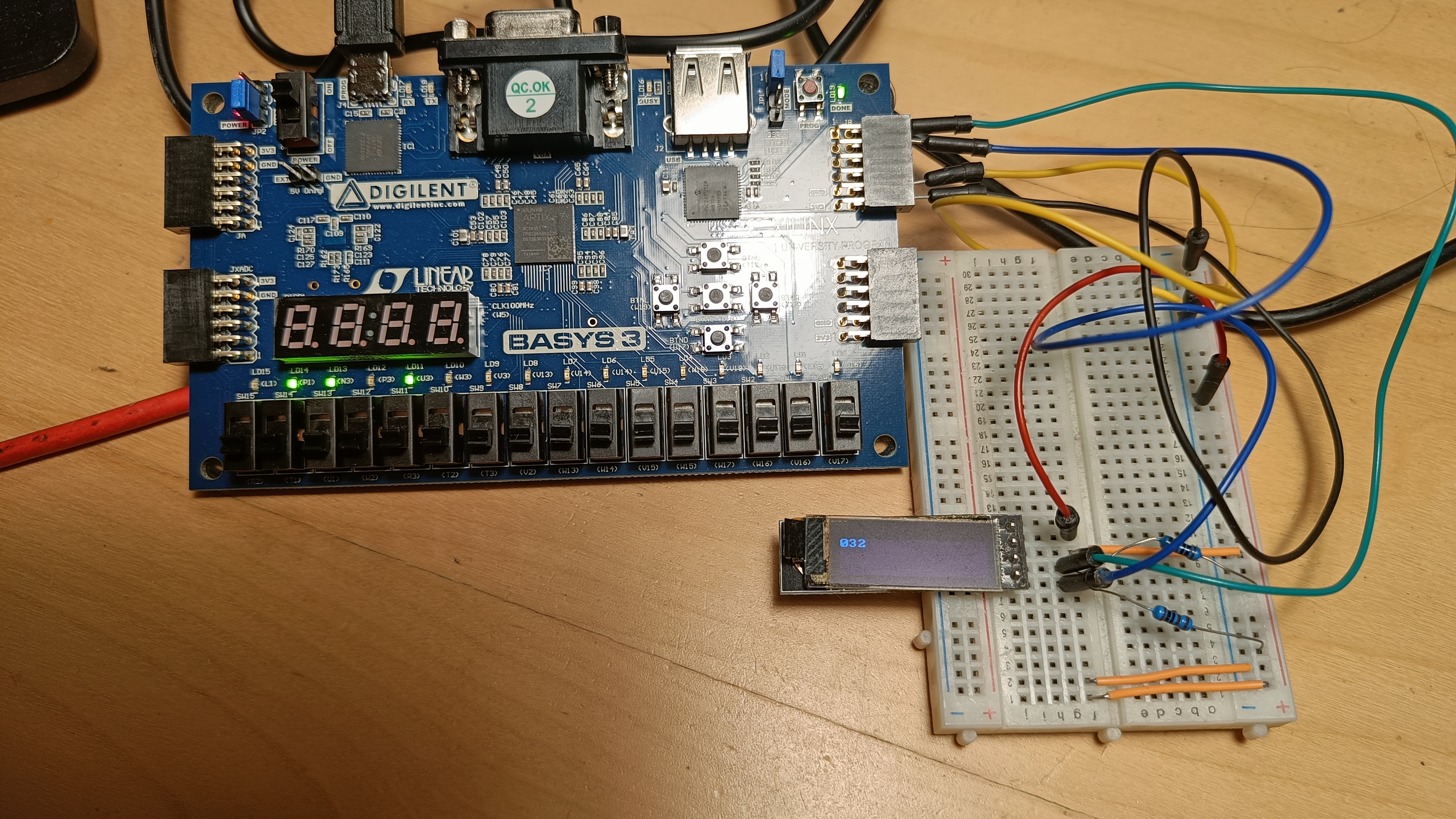

See the following figure showing the setup with Basys 3 board with SSD1306 counter entity connected to the SSD1306.

The top level entity consists of three main entities. One of those is for a BCD counter, another for FSM for controlling the SSD1306 display, and data that are being sent to it, and the last for I2C master.

There are also three supporting entities, two open drain buffers for scl and sda. The last one is for treating metastability of the reset.

The following page shows the diagram of the top level entity for SSD1306 counter exported from Vivado.

\pagenumbering{gobble} \begin{landscape} \begin{sidewaysfigure}[ht] \centering

\hspace*{-5cm} \vspace{-3cm} \includegraphics[angle=180, width=850pt, trim=-5cm 0 0 -5cm]{./img/ssd1306_counter_schematic.pdf} \caption{SSD1306 counter top level diagram}

\end{sidewaysfigure} \end{landscape} \pagenumbering{arabic}

#I2C

The implementation consists of two separate top level entities, one of those is used for master entity and the other for slave entity.

The sda and scl lines are controlled by sda_enable and scl_enable signals. Having these set to high means the line should be pulled down. There is also sda and scl inputs that should get the actual values of the GPIO. An open_drain_buffer entity should be used to connect the input and enable output to the actual pad.

Both master and slave entities share the rx and tx data interfaces. The difference is that master has signals for requesting a new transaction, but the slave waits for a start condition to start receiving/transmitting.

#Entity master

The master entity is a top level entity for using the I2C core as a master. It connects all of the blocks for a functioning I2C master.

The entity has three control inputs start, stop, and run. Run should be high when the master is operating. Setting start high will generate a start condition when possible. Setting stop high will generate a stop condition when possible. Both start and stop should be set high for just one cycle. When setting both start and stop high at the same time, one byte will be transmitted or received, and then stop condition generated.

The entity supports arbitrary scl speeds. But only one can be chosen for instance, via generic argument. The generator always makes sure the scl is stable for at least SCL_MIN_STABLE_CYCLES clock cycles.

Table: Ports of master entity

Name	Type	Description
clk_i	std_logic	Clock input
rst_in	std_logic	Asynchronous reset (active low)
slave_address_i	std_logic_vector[7]	Address of the slave to choose
generate_ack_i	std_logic	Whether to generate acknowledges on received data
expect_ack_i	std_logic	Whether to expect acknowledges on transmitted data
rx_valid_o	std_logic	rx_data are valid
rx_data_o	std_logic_vector[8]	Received data
rx_confirm_i	std_logic	Confirm read of rx_data to receive next
tx_ready_o	std_logic	tx_data may be received
tx_valid_i	std_logic	tx_data are valid
tx_data_i	std_logic_vector[8]	Data to transmit
tx_clear_buffer_i	std_logic	Clear transmit buffer (unsent data)
err_noack_data_o	std_logic	Got NACK when transmitting
err_noack_address_o	std_logic	Got NACK on first byte with address
err_arbitration_o	std_logic	Got unexpected value on sda
err_general_o	std_logic	Other errors, like unexpected start cond
stop_i	std_logic	Generate stop condition when possible
start_i	std_logic	Generate start condition when possible
run_i	std_logic
rw_i	std_logic	Read or write transaction (R = 1)
dev_busy_o	std_logic	Master device is currently busy
bus_busy_o	std_logic	Bus is busy (but master is not)
waiting_o	std_logic	Waiting for data on transmit or for read confirm
sda_i	std_logic	I2C sda line
scl_i	std_logic	I2C scl line
sda_enable_o	std_logic	Pull sda low
scl_enable_o	std_logic	Pull scl low

Table: Generic arguments of master entity

Name	Type	Default value
SCL_FALLING_DELAY	natural	How many clock cycles to wait
		after scl falling to set sda
SCL_MIN_STABLE_CYCLES	natural	Minimum clock cycles to keep scl stable

The following page contains the diagram of the I2C master entity along with all components.

\pagenumbering{gobble} \begin{landscape} \begin{sidewaysfigure}[ht] \centering

\hspace*{-5cm} \vspace{2cm} \includegraphics[angle=180, width=700pt, trim=0 0 0 0]{./img/i2c_master_schematic.pdf} \caption{SSD1306 counter top level diagram}

\end{sidewaysfigure} \end{landscape} \pagenumbering{arabic}

#Entity slave

Slave entity is a top level for I2C slave.

It outputs the current state (such as bus busy, device busy, r/w) upon receiving commands from the master.

Table: Ports of slave entity

Name	Type	Description
clk_i	std_logic	Clock input
rst_in	std_logic	Asynchronous reset (active low)
address_i	std_logic_vector[7]	Address of the slave
generate_ack_i	std_logic	Whether to generate ack on every read
expect_ack_i	std_logic	Whether to expect acknowledges on transmitted data
rx_valid_o	std_logic	rx_data are valid
rx_data_o	std_logic_vector[8]	Received data
rx_confirm_i	std_logic	Confirm data of rx_data to receive next
rx_stretch_i	std_logic	Allow stretching when buffer full
tx_ready_o	std_logic	tx_data may be received
tx_valid_i	std_logic	tx_data are valid
tx_data_i	std_logic_vector[8]	Data to transmit
tx_stretch_i	std_logic	Allow stretching on transmitting (no data)
tx_clear_buffer_i	std_logic	Clear transmit buffer (unsent data)
err_noack_o	std_logic	Got NACK when transmitting
err_sda_o	std_logic	Got unexpected value on sda
rw_o	std_logic	Read or write transaction (R = 1)
dev_busy_o	std_logic	Master device is currently busy
bus_busy_o	std_logic	Bus is busy (but master is not)
waiting_o	std_logic	Waiting for data on transmit or for read confirm
sda_i	std_logic	I2C sda line
scl_i	std_logic	I2C scl line
sda_enable_o	std_logic	Pull sda low
scl_enable_o	std_logic	Pull scl low

Table: Generic arguments of slave entity

Name	Type	Default value
SCL_FALLING_DELAY	natural	How many clock cycles to wait after
		scl falling to set sda

The following page contains the diagram of the I2C slave entity along with all components.

\pagenumbering{gobble} \begin{landscape} \begin{sidewaysfigure}[ht] \centering

\hspace*{-5cm} \vspace{2cm} \includegraphics[angle=180, width=700pt, trim=0 0 0 0]{./img/i2c_slave_schematic.pdf} \caption{SSD1306 counter top level diagram}

\end{sidewaysfigure} \end{landscape} \pagenumbering{arabic}

#Common

All of the blocks responsible for receiving or sending data should get the scl state from the input going to the FPGA/ASIC, the same goes for sda. This makes sure that features such as scl stretching or arbitration are supported. If scl from scl_generator were to be used, there would be no possibility to detect either one of those.

:::note Some of the entities accept delayed falling pulse of scl. This is to make sure sda is changed after scl is indeed low. If sda were to be changed right away, it's possible there would be a device that would detect start or stop condition when there is actually no condition. :::

#Entity address_generator

Address generator is responsible for sending address when requested. It's used in the I2C master to select a slave. Currently it supports only 7 bit addresses. It checks ACK as well, and outputs noack_o for NACK. It also checks the sda level when sending to detect arbitration loss.

Table: Ports of address_generator entity

Name	Type	Description
clk_i	std_logic	Clock input
rst_in	std_logic	Synchronous reset (active low)
address_i	std_logic_vector[7]	The address to send
rw_i	std_logic	R/W to send (R = 1)
store_address_rw_i	std_logic	When to store address and rw
start_i	std_logic	Start sending address
scl_rising_i	std_logic	scl rising pulse
scl_falling_delayed_i	std_logic	scl falling pulse delayed
sda_enable_o	std_logic	Keep sda low
sda_i	std_logic	Current sda level
noack_o	std_logic	Did not get acknowledge
unexpected_sda_o	std_logic	sda detected at scl rising edge is wrong.
		(Arbitration lost)
done_o	std_logic	Address sent

#Entity address_detector

Address detector looks at the received data to check if the address matches the address of the slave. Currently it supports only 7 bit addresses. It supports sending ACK after address received.

Table: Ports of address_detector entity

Name	Type	Description
clk_i	std_logic	Clock input
rst_in	std_logic	Synchronous reset (active low)
address_i	std_logic_vector[7]	The address to detect
store_address_i	std_logic	When to store the address to buffer
scl_rising	std_logic	scl rising pulse
scl_falling_delayed_i	std_logic	scl falling pulse delayed
sda_enable_o	std_logic	Keep sda low
sda_i	std_logic	Current sda level
start_i	std_logic	Start detecting address with next scl
rw_o	std_logic	Detected R/W value
success_o	std_logic	Address matching. rw set
fail_o	std_logic	Address not matching

#Entity rx

Receiver entity is responsible for receiving data from the data bit line (sda), and delivering the bytes received. It's not meant to be used as detector of the address, that is what address_detector is for.

The entity supports scl stretching. When the data are not yet read (that should be signaled by confirm_read_i), it will stretch the scl to prevent loss of data. The data are stored in a separate buffer when full data are received. This makes it possible to start receiving next byte immediately without having to wait for read from another entity. However, if the receive buffer gets full with second byte, there is need for the stretching. For master, this means scl is not generated, for slave it means it's held down even though the master is trying to let go to get high level.

The entity is also responsible for acknowledging the received data when generate_ack_i is set.

Table: Ports of rx entity

Name	Type	Description
clk_i	std_logic	Clock input
rst_in	std_logic	Synchronous reset (active low)
start_read_i	std_logic	Read should be initiated on next scl
rst_i2c_i	std_logic	Reset only i2c logic, keep data
scl_rising	std_logic	scl rising pulse
scl_falling_delayed_i	std_logic	scl falling pulse, delayed
scl_stretch_o	std_logic	Keep scl low
sda_i	std_logic	Current sda level
sda_enable_o	std_logic	Whether to keep sda low
done_o	std_logic	Byte received, acknowledged
generate_ack_i	std_logic	Generate acknowledge after received
read_valid_o	std_logic	read_data are valid for reading
read_ready_o	std_logic	Ready for next transaction
read_data_o	std_logic_vector[8]	Read data
confirm_read_i	std_logic	Confirm data were read

#Entity tx

Transmitter entity is responsible for transmitting data to the data bit line (sda), and for storing the data to be sent next. It's not meant to be used as generator/sender of the address, that is what address_generator is for.

The entity supports scl stretching. When there are not any data to be sent delivered yet, it will stretch the scl. For master, this means scl is not generated, for slave it means it's held down even though the master is trying to let go to get high level.

If wrong level is detected on the sda upon rising edge of scl, the entity signals that in unexpected_sda_o.

The entity is also responsible for verifying acknowledge at the right time, and signaling that no acknowledge has been received.

Table: Ports of tx entity

Name	Type	Description
clk_i	std_logic	Clock input
rst_in	std_logic	Synchronous reset (active low)
start_write_i	std_logic	Write should be initiated
rst_i2c_i	std_logic	Reset only i2c logic, keep data
clear_buffer_i	std_logic	Clear transmit buffer
done_o	std_logic	Data transmitted, and acknowledged
unexpected_sda_o	std_logic	sda value was wrong on scl rising
noack_o	std_logic	Did not get ACK
scl_rising	std_logic	scl rising pulse
scl_falling_delayed_i	std_logic	scl falling pulse, delayed
scl_stretch_o	std_logic	Keep scl low
sda_i	std_logic	Current sda level
sda_enable_o	std_logic	Keep sda low
ready_o	std_logic	Ready for new data
valid_i	std_logic	Data in write_data are valid
write_data_i	std_logic_vector[8]	Data to transmit

#Entity scl_generator

Scl generator generates the scl while making sure to keep the signal high or low (stable) for at least specified number of cycles. It may send a signal when the scl cannot be set to high level, that could signal a slave pulling down the line.

It supports single requests for falling or rising edges (used for startstop condition generation) as well as continuous (used for transmit/receive).

Table: Ports of scl_generator entity

Name	Type	Description
clk_i	std_logic	Clock input
rst_in	std_logic	Synchronous reset (active low)
scl_i	std_logic	Current level of scl
scl_rising_i	std_logic	scl rising pulse
scl_falling_i	std_logic	scl falling pulse
gen_continuous_i	std_logic	Generate continuous scl clock
gen_rising_i	std_logic	Generate rising edge
gen_falling_i	std_logic	Generate falling edge
scl_enable_o	std_logic	Keep scl low
cannot_comply_o	std_logic	Cannot set scl high

Table: Generic arguments of scl_generator entity

Name	Type	Description
MIN_STABLE_CYCLES	natural	How many clock cycles to keep scl stable

#Entity startstop_condition_detector

This entity detects either start or stop condition. It produces a pulse for duration of one clock cycle when either start or stop is detected.

Table: Ports of startstop_condition_detector entity

Name	Type	Description
clk_i	std_logic	Clock input
sda_i	std_logic	Current sda level
scl_i	std_logic	Current level of scl
start_o	std_logic	Start condition detected
stop_o	std_logic	Stop condition detected

#Entity startstop_condition_generator

Generates either start or stop condition. If the scl has to be changed to different level, it generates a request that should be handled by the scl_generator. The generator should be able to generate the condition from any starting state, as long as nothing else, including the slaves, is not holding down either scl or sda. If the sda has to be changed to be able to generate the condition, scl is first requested to be pulled down, sda is changed, after that, scl is requested to be high, and as last, the sda is changed to generate the condition. Some of those might be omitted according to the actual state of the sda and scl.

Table: Ports of startstop_condition_generator entity

Name	Type	Description
clk_i	std_logic	Clock input
rst_in	std_logic	Synchronous reset (active low)
sda_i	std_logic	Current level of sda
scl_rising_i	std_logic	scl rising pulse
scl_falling_i	std_logic	scl falling pulse
scl_falling_delayed_i	std_logic	scl delayed falling pulse
sda_enable_o	std_logic	Keep sda low
start_condition_i	std_logic	Start condition detected
stop_condition_i	std_logic	Stop condition detected
gen_start_i	std_logic	Generate start condition
gen_stop_i	std_logic	Generate stop condition
req_scl_fall_o	std_logic	Request scl falling edge
req_scl_rise_o	std_logic	Request scl rising edge
early_condition_o	std_logic	Detected early condition (prior to generating ourselves)
done_o	std_logic	Requested condition generated

Name	Type	Description
DELAY	natural	How long to wait after each operation

#Entity master_state

This entity is a FSM for the master entity. It commands what should be done, such as generating the address, receiving data, transmitting data, etc. It also decides when to go to error state, and outputs an error that is propagated through the master entity. The errors are cleared upon next start request so that it might be validated if there has been a new error for the start request.

Inputs and outputs from other entities, should be explained by other entities well already.

#Entity slave_state

This entity is a FSM for the slave entity. It commands what should be done, such as detecting the address, receiving data, transmitting data, etc. It also decides when to go to error state, and outputs an error that is propagated through the slave entity. The errors are cleared upon next start condition.

Inputs and outputs from other entities, should be explained by other entities well already.

#Block diagrams

{width=50%} {width=50%} {width=50%} {width=50%} {width=50%} {width=50%} {width=50%} {width=40%} {width=50%} {width=50%} {width=50%}

#Conclusion

Both master and slave have been verified to be working in simulation and on an FPGA board. All found issues were solved, and when the issues were found on the FPGA, but not in simulation, a new testcase has been added to make sure the behavior is verified again if there were any changes made.

The components correctly monitor the bus even when they are not being used, and output if the bus is busy or not. There are errors reported in case something went wrong (wrong sda level, arbitration lost, etc.). This should make the I2C components usable in real applications even if more masters are incorporated on the bus.

There are some things that could be added or changed in the future, such as:

• 10 bit addressing support
• More error states (timeout)
• Multiple possible scl frequencies switchable after synthesis
• Adding behavioral I2C master and I2C slave modules for simulation

The 10 bit addressing is not currently supported, although its support should not be hard to implement. address_generator and address_detector entities interfaces make it so that it would be sufficient to pospone setting done after the second byte is received instead of the first one.

So far if the scl generator entity detects an error (that it cannot get the line high), it will produce a signal to say that, but this signal is not utilized in the FSM entity for the master. That means if the line stays low indefinitely (possibly due to a failing slave device), the master will become stuck without notifying the application about a possible problem.

The master entity supports only one frequency for scl for now. That could be changed by passing in an array of values instead of one generic argument for saying how many cycles to keep scl stable. Then it could be chosen by an input port that would act as an index.

The simulation currently uses blocking procedures for testing. These procedures are called from the top level simulation entities. This makes it hard to test some of the features such as verifying whether error signal became high at the correct scl edge. It's also quite hard to test having multiple devices on the bus sending data simultaneously. That could come in handy to test arbitration. Both of these could be overcome by adding I2C behavioral modules, and instead of generating the scl and sda from the top level testing entity, they would be generated by these behavioral models. The top level entity would just notify the behavioral models to start generating or expect the given transaction.

#References
