#Gtkwave TCL generator
This is a simple generator of tcl files that may be used along with gtkwave. The generator generates tcl according to a testbench file, with rules that may be specified inside of comments.
#Usage (vhdl code)
Signals are parsed one by one, their order is respected. They may be omitted using the omit.
Comments inside of architecture declaration (between is and begin keywords)
will be parsed. Standalone comments update the current context, this may be useful
to specify color of multiple signals that will follow.
To reset the color, format to default, use the reset.
Comments that are associated with a signal (the comment is at the same line as the semicolon), are treated as associated with the given signal (or signals if the declaration declares multiple signals). These do not update the current context.
#Usage (cli)
The generator works as a cli. Folder with the testbenches, name of the testbench, and output tcl file must be specified for proper operation.
Usage: gtkwave_tcl_generator --folder <FOLDER> --testbench <TESTBENCH> --output <OUTPUT>
Options:
-f, --folder <FOLDER>
-t, --testbench <TESTBENCH>
-o, --output <OUTPUT>
-h, --help Print help
-V, --version Print version
#Supported comment 'keywords'
| token | values | description |
|---|---|---|
| reset | None | Reset current context. |
| omit | None | Omit the signals (not respected for "add signal"). |
| color | normal, red, orange, yellow, green, blue, indigo, violet, cycle | Sets the color of the signal. |
| format | hex, decimal signed decimal, binary | Sets the display format. |
| add signal | path to the signal | Adds the given signal, use dot notation. Separate options with comma |
#Example usage
This is architecture declaration for a testbench of spi_slave component.
architecture tb of tb_spi_slave is
-- color indigo
signal clk : std_logic := '0';
signal rst : std_logic := '0';
-- color green
signal tx_valid, tx_ready, tx_transmitting : std_logic;
signal tx_data : std_logic_vector(7 downto 0);
-- color orange
signal rx_valid : std_logic;
signal rx_data : std_logic_vector(7 downto 0);
-- reset
signal gated_si : std_logic; -- color red
signal so : std_logic;
signal cs_n : std_logic := '1';
-- omit
signal loopback : std_logic := '0';
signal si : std_logic := '0';
-- add signal uut.tx.data_bit_index_reg
-- add signal uut.rx.bit_index_reg
begin -- architecture tb
To generate a tcl, use: gtkwave_tcl_generator --folder testbenches --testbench tb_spi_slave --output spi_slave.tcl.
This will generate a tcl script. This script will add all of the signals that are not omitted using omit,
with the colors specified.

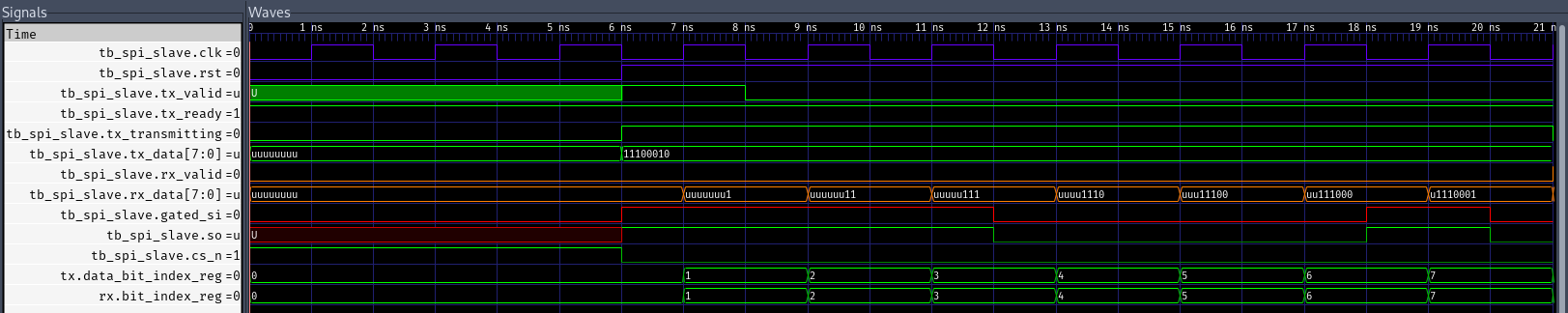

The result inside of gtkwave:
